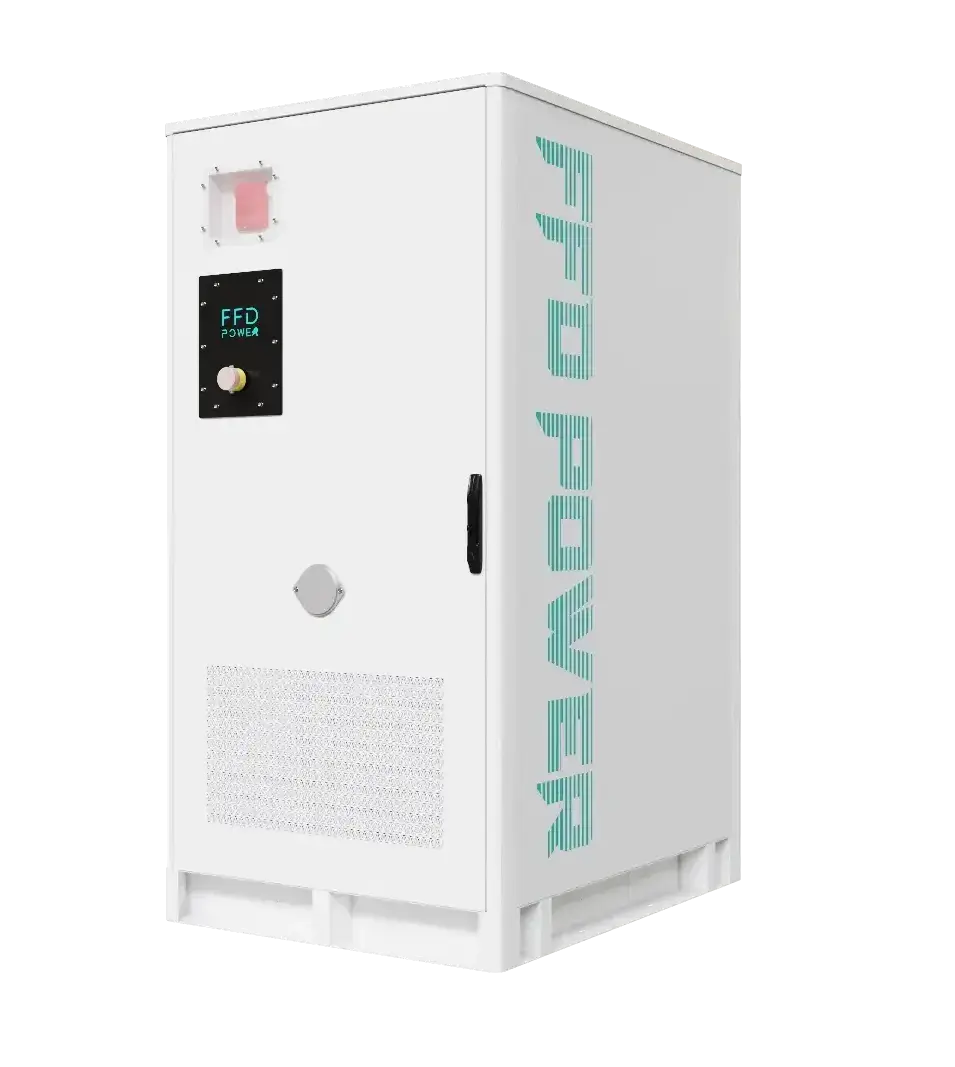

Galaxy 261L-AIO-2H | 125 kW / 261 kWh C&I storage

Why Galaxy 261L?

Every part of the project is considered during planning.

01

400 V for C&I

Output is 230/400 V AC, on-grid and off-grid, 50/60 Hz. Rated power 125 kW, maximum 137.5 kVA, 110% continuous overload.

02

261 kWh

LFP 314 Ah, 1P52S×5, DC range 728–910 V.

03

Fire protection in the cabinet

Combustible-gas detection, ventilation and aerosol suppression. The cabinet is IP54, liquid cooled, −20 °C to 60 °C, with derating above 45 °C.

04

EMS and BMS

Battery communication over CAN and RS485. EMS, PCS and fire protection sit in the same all-in-one cabinet.

System parameters

Select Battery, PCS or EMS. Only the matching certifications appear below.

Battery

CEIEC62619IEC63056UL9540AUN38.3MSDS

System in the cabinet

The same 400 V cabinet platform. Each part is marked with a brand-colour icon.

Aerosol extinguisher

Fire protection in the cabinet

Gas detection

Combustible gas and ventilation

Liquid cooler

Cabinet cooling

HMI

Local cabinet control

EPO

Emergency stop on the front

PCS 400 V

125 kW, EPCS125-AM-F

EMS

Energy management in the cabinet

BMS

CAN and RS485

Application

400 V AC coupling for commercial, industrial and PV sites.

125 kW / 261 kWh

Galaxy 261L with the EPCS125-AM-F PCS, 230/400 V output, on-grid and off-grid, 261 kWh.

IndustryPV self-consumptionGrid balancing (FCR)EV charging

Download Center

Every document you need is here

Manual

Grid-compliant SLDs, cabling diagrams, foundation drawings

Layout

Tailored parts list to match site voltage, PV systems, and PCS type

BOM & Component Matching

Structured knowledge transfer to customer team

Primary System Diagram

Grid-compliant SLDs, cabling diagrams, foundation drawings

Secondary Circuit Diagram

Tailored parts list to match site voltage, PV systems, and PCS type

Installation Guide

Structured knowledge transfer to customer team

Anti Fire Instruction

Grid-compliant SLDs, cabling diagrams, foundation drawings

Certificate

Tailored parts list to match site voltage, PV systems, and PCS type

Request a project

Project inquiry, no obligation

Tell us the voltage, number of cabinets and site. The inquiry is only for Galaxy 261L-AIO-2H and is used for sizing.
